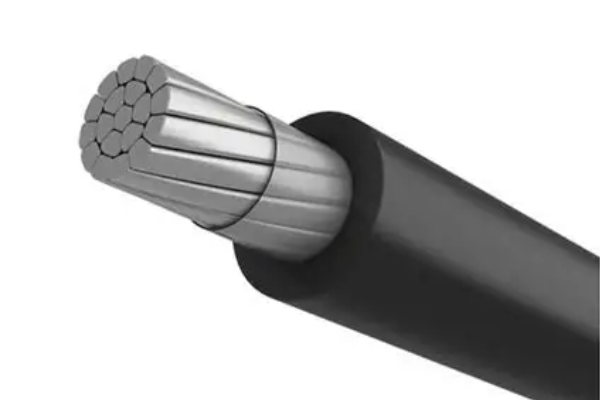

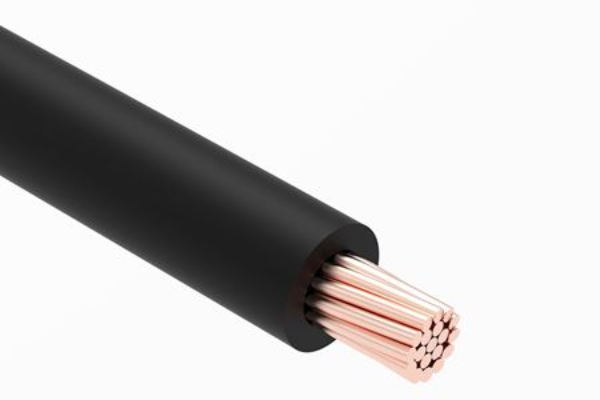

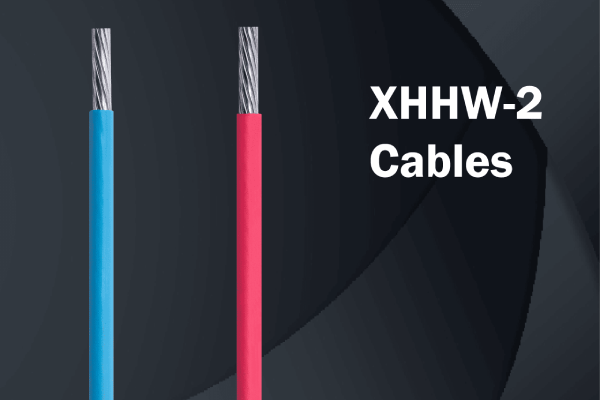

XHHW-2/RW90 series XLPE cable

Home / Product / NMD90 CSA/ XHHW-2/RW90 series XLPE cable

Copper or Aluminum conductor with XLPE insulation

UL44 600V type XHHW-2, XHHW, XHH, SIS

CSA/cUL 600V type RW90, R90, RWU90,RHH, RHW, RHW-2

CSA/cUL 2000V type RHH, RHW, RHW-2

Fast Quote

Need Help ?

APPLICATION

STANDARD & REFERENCES

CONSTRUCTION

PARAMETER

GET A QUOTE

APPLICATION

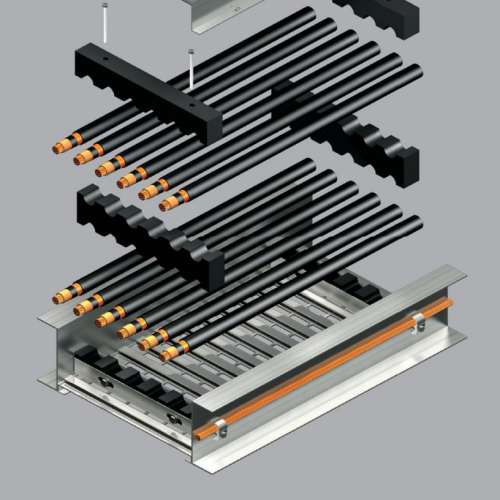

For open wiring and raceways (except cable troughs and ventilated flexible cableway) in dry or wet locations.

For exposed wiring where exposed to weather with sunlight resistant insulation.

Approved for use with ceiling fixtures.

Laying in cable tray or cable bus.

STANDARD & REFERENCES

CSA Standard C22.2 No.38

ASTM- B3, B8 (7, 19, 37, 61 Strands), B787 (19 Strands)

UL Standard 44

Gas and Oil Resistant II sizes 8 AWG and larger

Sunlight (UV) Resistant – S 8 AWG and larger

National Electrical Code, NFPA 70

NEMA WC 70 Construction Requirements

CONSTRUCTIONS

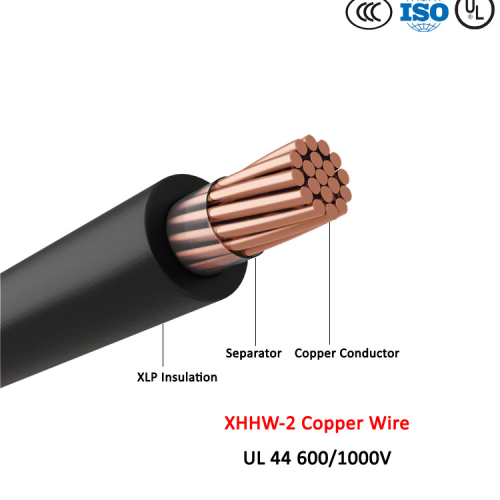

Feature	Specification
Conductor	Annealed bare copper wires, or compact aluminum 8000 series wires, class B.
Insulation	Heat and moisture resistant, low temperature Cross-Linked Polyethylene (XLPE)
Colour Coding	Black (other colors available upon request)

PARAMETERS

XHHW-2 CU Cable

Conductor		Insulation	Nominal	Approx. Net Wt.	Allowable Ampacities
Size(AWG or Kcmil）	No.of strands	Thickness	.D. O	Per 1000′	60°C	75°C	90°C
Size(AWG or Kcmil）	No.of strands	(mils)	(mils)	(lbs.)	60°C	75°C	90°C
14	7	30	130	18	15	15	15
12	7	30	162	37	20	20	20
10	7	30	171	40	30	30	30
8	7	45	232	65	40	50	55
6	7	45	268	96	55	65	75
4	7	45	311	147	70	85	95
3	7	45	337	183	85	100	115
2	7	45	367	227	95	115	130
1	19	55	435	291	110	130	145
1/0	19	55	477	363	125	150	170
2/0	19	55	521	453	145	175	195
3/0	19	55	571	565	165	200	225
4/0	19	55	627	706	195	230	260
250	37	65	695	835	215	255	290
300	37	65	748	995	240	285	320
350	37	65	798	1155	260	310	350
400	37	65	843	1314	280	335	380
500	37	65	927	1633	320	380	430
600	61	80	1033	1965	350	420	475
700	61	80	1102	2282	385	460	520
750	61	80	1135	2440	400	475	535
1000	61	80	1284	3229	455	545	615

XHHW-2 AL Cable

Conductor Size (AWG, Kcmil)	Phase Conductor Diameter		Nominal Insulation Thickness		Nominal Overall Diameter		Approx. Weight		Allowable Ampacity AMPS
Conductor Size (AWG, Kcmil)	inch	mm	mils	mm	mils	mm	kg/km	lbs/1000ft	60C	75C	90C
8	0.134	3.4	45	1.14	224	5.7	41.26	28	35	40	45
6	0.169	4.29	45	1.14	259	6.6	58.21	39	40	50	55
4	0.213	5.41	45	1.14	303	7.7	84.12	57	55	65	75
2	0.268	6.81	45	1.14	358	9.1	123.33	83	75	90	100
1	0.299	7.59	55	1.4	409	10.4	159.21	107	85	100	115
1/0	0.336	8.53	55	1.4	446	11.3	193.47	130	100	120	135
2/0	0.376	9.55	55	1.4	486	12.3	235.74	158	115	135	150
3/0	0.423	10.74	55	1.4	533	13.5	288.87	194	130	155	175
4/0	0.475	12.07	55	1.4	585	14.9	354.79	238	150	180	205
250	0.52	13.21	65	1.65	650	16.5	427.54	287	170	205	230
300	0.57	14.48	65	1.65	700	17.8	502.31	338	195	230	260
350	0.616	15.65	65	1.65	746	18.9	575.05	386	210	250	280
400	0.659	16.74	65	1.65	789	20	651.08	438	225	270	305
500	0.736	18.69	65	1.65	865	22	796.31	535	260	310	350
600	0.813	20.65	80	2.03	973	24.7	974.36	655	285	340	385
700	0.877	22.28	80	2.03	1037	26.3	1122.64	754	310	375	425
750	0.908	23.06	80	2.03	1068	27.1	1195.16	803	320	385	435
900	0.999	25.37	80	2.03	1159	29.4	1413.51	950	355	425	480
1000	1.06	26.92	80	2.03	1220	31	1559.76	1048	375	445	500

RW90 XLPE cable

Conductor			Insulation thickness	Approx. OD (mm)
AWG/kcmil	Nos of strands(CU)	Nos of strands(ACM)	(mm)	CU	AL
1X14	1 or 7	/	0.76	3.2	3.2
1X12	1 or 7	7	0.76	3.7	3.7
1X10	1 or 7	7	0.76	4.2	4.2
1X8	7	7	1.14	6	5.8
1X6	7	7	1.14	7	6.7
1X4	7	7	1.14	8.2	7.8
1X2	7	7	1.14	9.7	9.2
1X1/0	19	18	1.4	12.2	11.4
1X2/0	19	18	1.4	13.3	12.4
1X3/0	19	19	1.4	14.6	13.6
1X4/0	19	19	1.4	16	15
1X250	37	36	1.65	17.7	16.7
1X350	37	36	1.65	20.3	19.1
1X400	37	36	1.65	21.2	20.2
1X500	37	36	1.65	23	22.1
1X750	61	58	2.03	28.7	27.3

Please contact engineer to Get complate specification.
