Home / Product / THHN/T90 series Indoor Building Wire

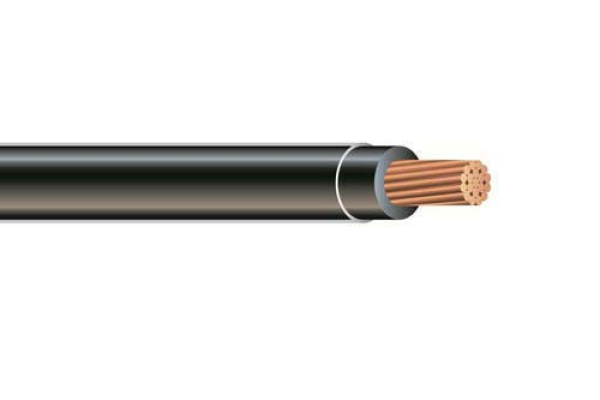

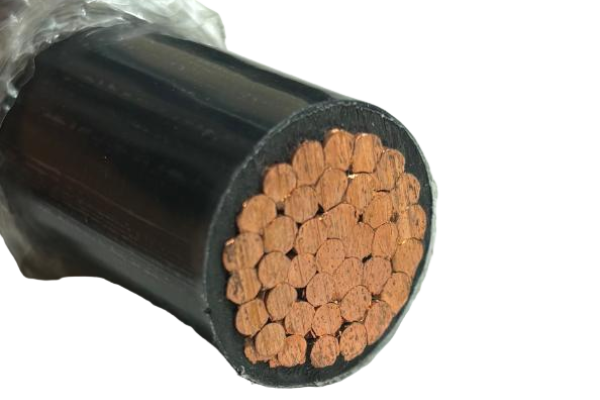

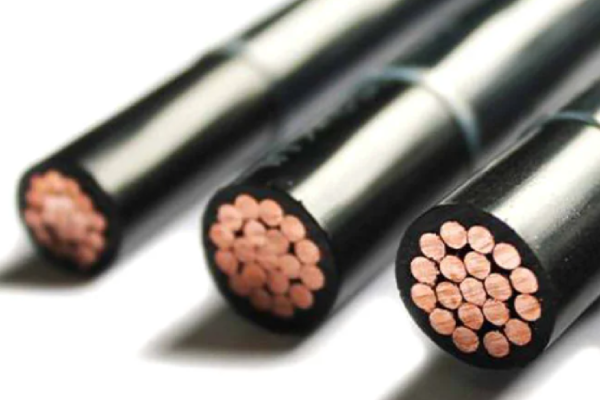

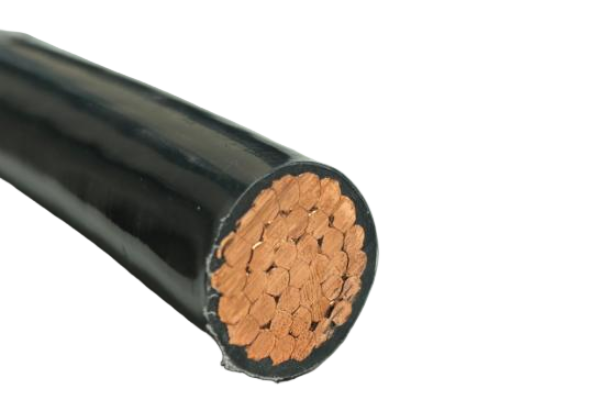

Copper or Aluminum conductor PVC insulation Nylon cover
UL83 type THHN/THWN/THWN-2/THW/THW-2
CSA/cUL type T90 Nylon/TWN75
PNS THHN for Philippine market.

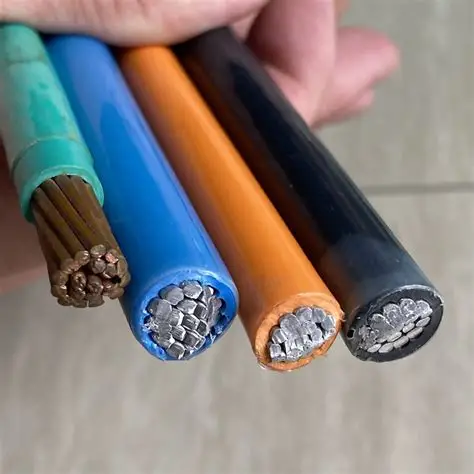

Type THHN/THWN conductors are primarily used in conduit for services, feeder, and branch circuits in commercial or industrial applications as specified in the National Electrical Code.
When used as type THHN, conductor is suitable for use in dry locations at temperatures not to exceed 90°C.
When used as type THWN, conductor is suitable for use at temperatures not to exceed 90 ° C, dry locations or 75 ° C wet locations or not to exceed 75°C when exposed to oil or coolant.
When used as type THWN-2, conductor is suitable for use in wet and dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant.
Types T90 Nylon 90C dry, TWN75 75C dry/wet, single conductor constructions with PVC insulation and Nylon jacket, rated 600V, FT1, optional FT2, VW-1, SR, PR I, PR II, GR I and GR II, copper conductor sizes 14 AWG to 1000 kcmil, aluminum conductor sizes 12AWG to 1000 kcmil.

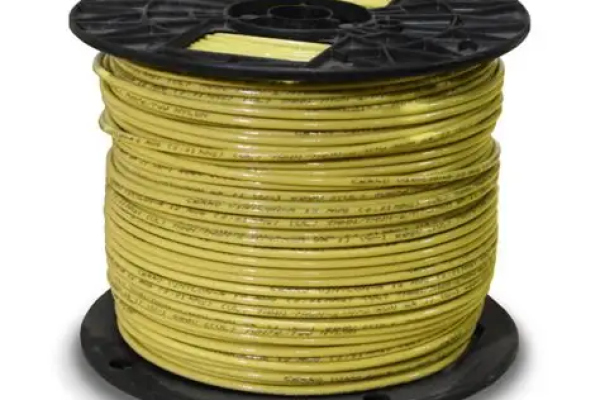

UL 83 – Thermoplastic-Insulated Wires and Cables
CSA C22.2 No. 75 (update no.1) – Thermoplastic-Insulated Wires and Cables
PNS 35-1:2004 : Thermoplastic electric wires and cables
| Component | Specification |
|---|---|
| Conductor | Annealed solid or stranded copper or Aluminum conductor |
| Insulation | PVC Available colors: Black, Red, Blue, Green, White, Purple, Orange, etc. |
| Jacket | Nylon (Note: Types THW, THHW, TW75 do not have this nylon cover) |
For Aluminum conductor datasheets please contact +86 15838074502
| Size AWG /Kcmil | Number of strands (Nos) | Min. Average Insulation | Min. Jacket | Overall | Approx. Wt. | ||
| Thickness | Thickness | Diameter | lbs/1000ft | ||||
| mil | mm | mil | mm | mm | |||
| 14 | 1 | 15 | 0.38 | 4 | 0.1 | 2.8 | 15 |
| 12 | 1 | 15 | 0.38 | 4 | 0.1 | 3.3 | 23 |
| 10 | 1 | 20 | 0.51 | 4 | 0.1 | 4.2 | 37 |
| 14 | 19 | 15 | 0.38 | 4 | 0.1 | 2.8 | 17 |
| 12 | 19 | 15 | 0.38 | 4 | 0.1 | 3.3 | 25 |
| 10 | 19 | 20 | 0.51 | 4 | 0.1 | 4.2 | 39 |
| 8 | 19 | 30 | 0.76 | 5 | 0.13 | 5.5 | 64 |
| 6 | 19 | 30 | 0.76 | 5 | 0.13 | 6.5 | 96 |
| 4 | 19 | 40 | 1.02 | 6 | 0.15 | 8.2 | 154 |
| 3 | 19 | 40 | 1.02 | 6 | 0.15 | 8.9 | 190 |
| 2 | 19 | 40 | 1.02 | 6 | 0.15 | 9.8 | 235 |
| 1 | 19 | 50 | 1.27 | 7 | 0.18 | 11.3 | 301 |
| 1/0 | 19 | 50 | 1.27 | 7 | 0.18 | 12.4 | 372 |
| 2/0 | 19 | 50 | 1.27 | 7 | 0.18 | 13.5 | 461 |
| 3/0 | 19 | 50 | 1.27 | 7 | 0.18 | 14.8 | 572 |
| 4/0 | 19 | 50 | 1.27 | 7 | 0.18 | 16.3 | 710 |
| 250 | 37 | 60 | 1.52 | 8 | 0.2 | 18 | 851 |
| 300 | 37 | 60 | 1.52 | 8 | 0.2 | 19.4 | 1008 |
| 350 | 37 | 60 | 1.52 | 8 | 0.2 | 20.7 | 1165 |
| 400 | 37 | 60 | 1.52 | 8 | 0.2 | 21.9 | 1327 |
| 450 | 37 | 60 | 1.52 | 8 | 0.2 | 23.1 | 1482 |
| 500 | 37 | 60 | 1.52 | 8 | 0.2 | 24.1 | 1637 |
| 550 | 37 | 70 | 1.78 | 9 | 0.23 | 25.7 | 1822 |
| 600 | 61 | 70 | 1.78 | 9 | 0.23 | 26.7 | 1977 |
| 650 | 61 | 70 | 1.78 | 9 | 0.23 | 27.6 | 2133 |
| 700 | 61 | 70 | 1.78 | 9 | 0.23 | 28.5 | 2294 |
| 750 | 61 | 70 | 1.78 | 9 | 0.23 | 29.4 | 2449 |
| 800 | 61 | 70 | 1.78 | 9 | 0.23 | 30.2 | 2603 |
| 900 | 61 | 70 | 1.78 | 9 | 0.23 | 31.8 | 2919 |
| 1000 | 61 | 70 | 1.78 | 9 | 0.23 | 33.3 | 3233 |
（For Aluminum conductor datasheets please contact +86 15838074502）
| Type | Designation | Applications |
| YJV | Copper conductor,XLPE insulated,PVC sheathed power cable | For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | |
| YJY | Copper conductor, XLPE insulated,PE sheathed power cable | |
| YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | |
| YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | |
| YJV23 | Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. |
| YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | |
| YJV33 | Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable | |
| YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
