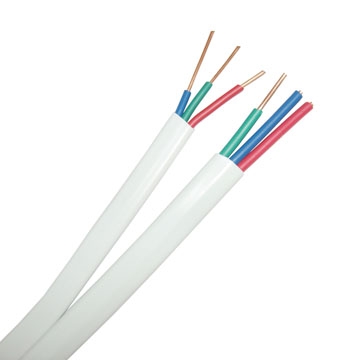

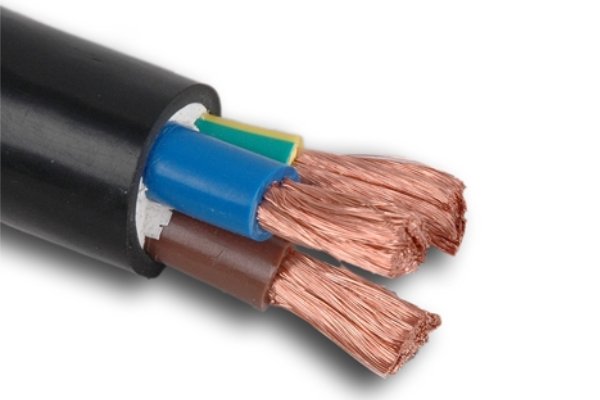

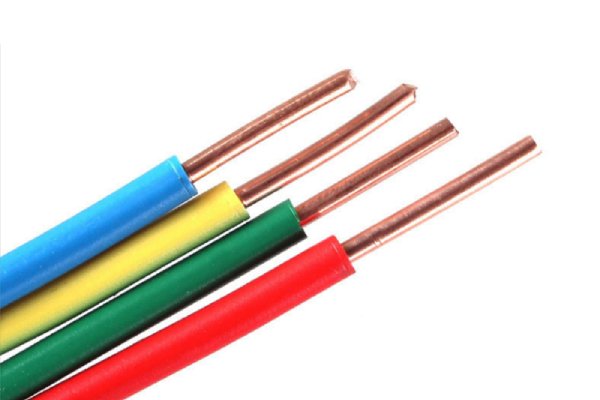

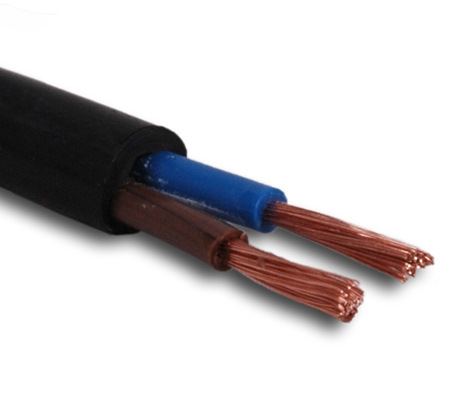

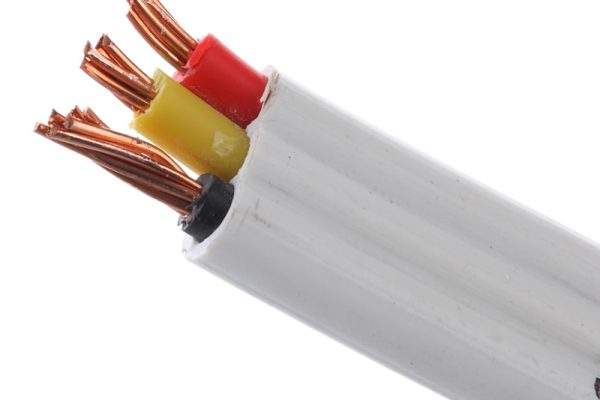

Home / Product / PVC INSULATED ELECTRIC WIRE
Copper or Aluminum conductor with PVC insulation
450/750V 300/500V 300/300V
IEC standard BV BLV BVR RV RVV RVVB, etc.
BS standard 6242Y & 6243Y, etc.
VDE standard H05Z-K/H07Z-K,etc.
PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc.
IEC60228
IEC60227
BS 6004:2000
<HAR> HD 22.9 S2
VDE-0282 Part-9
BS 7211
VDE 0482-267
ROHS compliant
| Component | Specification |
|---|---|
| Conductor | Copper or Aluminium Solid, Stranded or Flexible |
| Insulation | PVC |
| Jacket | PVC or LSZH |
| Size mm2 | Class of conductor | Insulation | Overall | Max. DC resistance at 20C (Ω/km) | Minimum insulation resistance at rated temperature MΩ·km |
| Thickness | Diameter | ||||
| mm | mm | ||||
| 1X1.5 | 1 | 0.7 | 2.6~3.2 | 12.1 | 0.011 |
| 1X2.5 | 1 | 0.8 | 3.2~3.9 | 7.41 | 0.01 |
| 1X4.0 | 1 | 0.8 | 3.6~4.4 | 4.61 | 0.0087 |
| 1X6.0 | 1 | 0.8 | 4.1~5.0 | 3.08 | 0.0074 |
| 1X10 | 1 | 1 | 5.3~6.4 | 1.83 | 0.0072 |
| 1X1.5 | 2 | 0.7 | 2.7~3.3 | 12.1 | 0.01 |
| 1X2.5 | 2 | 0.8 | 3.3~4.0 | 7.41 | 0.0099 |
| 1X4.0 | 2 | 0.8 | 3.8~4.6 | 4.61 | 0.0082 |
| 1X6.0 | 2 | 0.8 | 4.3~5.2 | 3.08 | 0.007 |
| 1X10 | 2 | 1 | 5.6~6.7 | 1.83 | 0.0067 |
| 1X16 | 2 | 1 | 6.4~7.8 | 1.15 | 0.0056 |
| 1X25 | 2 | 1.2 | 8.1~9.7 | 0.727 | 0.0053 |
| 1X35 | 2 | 1.2 | 9.0~10.9 | 0.524 | 0.0046 |
| 1X50 | 2 | 1.4 | 10.6~12.8 | 0.387 | 0.0046 |
| 1X70 | 2 | 1.4 | 12.1~14.6 | 0.268 | 0.004 |
| 1X95 | 2 | 1.6 | 14.1~17.1 | 0.193 | 0.0039 |
| 1X120 | 2 | 1.6 | 15.6~18.8 | 0.153 | 0.0035 |
| 1X150 | 2 | 1.8 | 17.3~20.9 | 0.124 | 0.0035 |
| 1X185 | 2 | 2 | 19.3~23.3 | 0.0991 | 0.0035 |
| 1X240 | 2 | 2.2 | 22.0~26.6 | 0.0754 | 0.0034 |
| 1X300 | 2 | 2.4 | 24.5~29.6 | 0.0601 | 0.0033 |
| 1X400 | 2 | 2.6 | 27.5~33.2 | 0.047 | 0.0031 |
| 1X500 | 2 | 2.8 | 30.5~36.9 | 0.0366 | 0.003 |
| 1X630 | 2 | 2.8 | 34.0~41.1 | 0.0283 | 0.0027 |
| 1X800 | 2 | 2.8 | 37.8~45.7 | 0.0221 | 0.0024 |
| 1X1000 | 2 | 3 | 42.1~51.0 | 0.0176 | 0.0023 |
| Nominal section | Core structure | Max. dia(mm) | Reference weight(kg/km) |
| (mm2) | No./dia(mm) | ||
| 0.3 | 16/0.15 | 2.3 | 6.4 |
| 0.4 | 23/0.15 | 2.5 | 8.1 |
| 0.5 | 16/0.2 | 2.6 | 9.1 |
| 0.75 | 24/0.2 | 2.8 | 12.2 |
| 1 | 32/0.2 | 3 | 15.1 |
Please contact engineer to Get complate specification.
Please do not hesitate to contact our cable engineer, they will be back to you in next 8 hours.
