OPGW FIBER CABLE

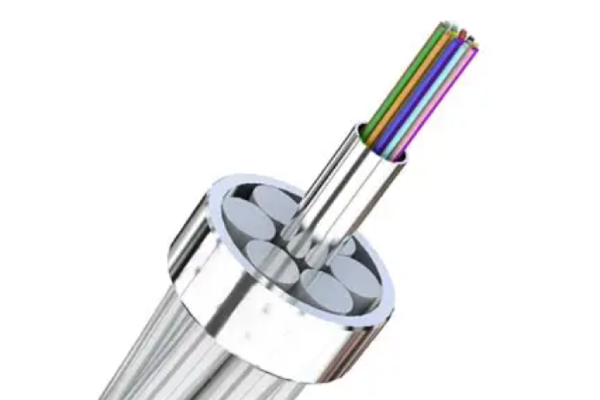

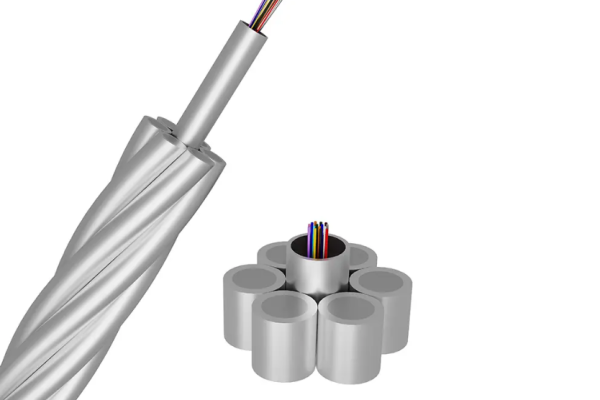

OPGW (1)

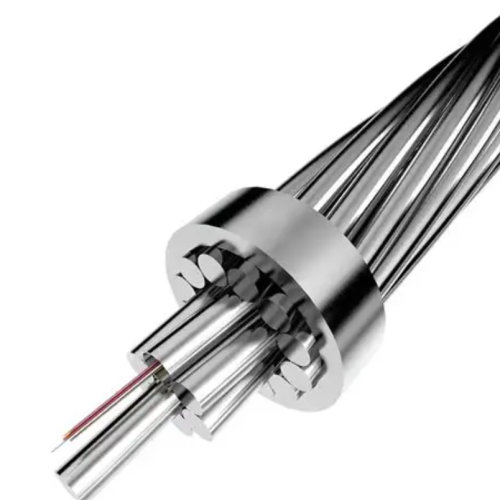

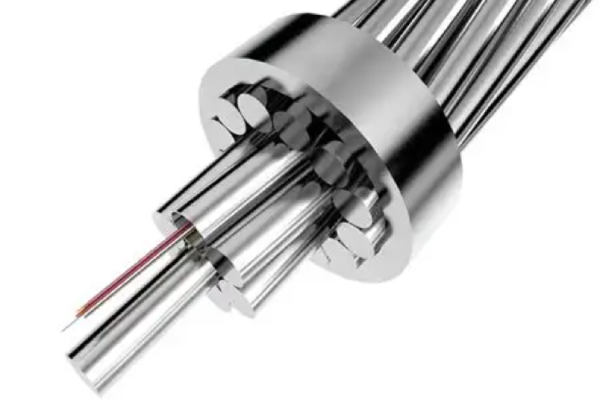

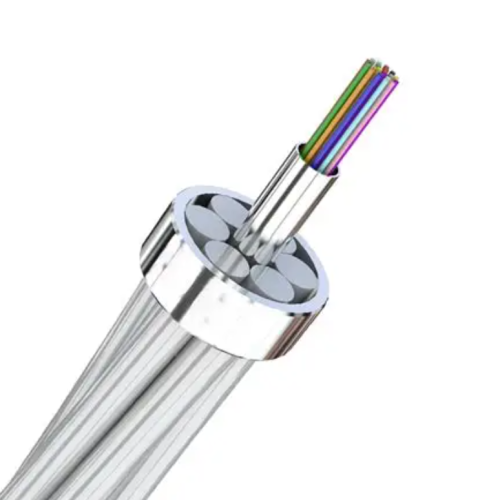

OPGW (2)
OPGW (3)

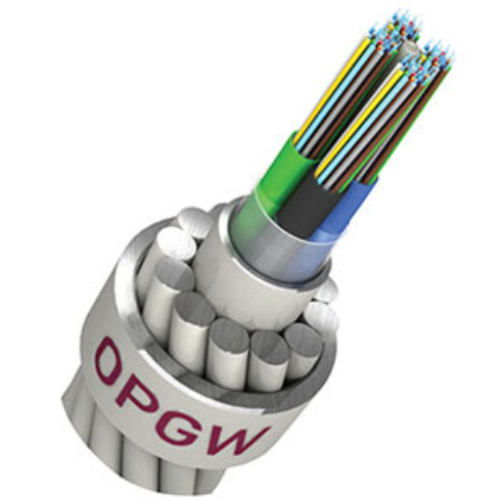

Fiber counts up to 96, Light weight and compact yet robust design offering high fiber density, Central stainless steel tube housing the the fibers inserted into an aluminum pipe, provides crush resistance and thermal, protection for fibers

Fast Quote

Need Help ?

APPLICATION

STANDARD & REFERENCES

CONSTRUCTION

PARAMETER

GET A QUOTE

APPLICATION

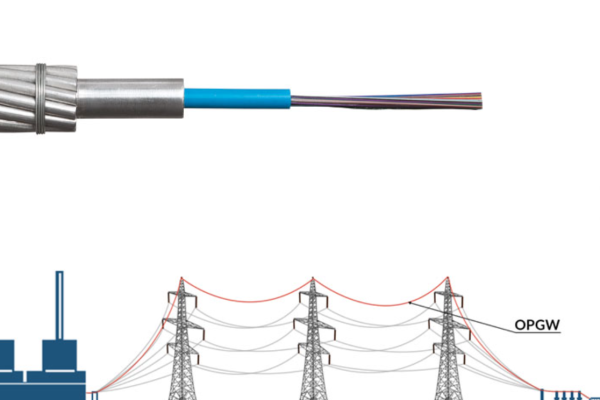

OPGW is primarily used by the electric utility industry, placed in the secure topmost position of the transmission line where it “shields” the all-important conductors from lightning while providing a telecommunications path for internal as well as third party communications. Optical Ground Wire is a dual functioning cable, meaning it serves two purposes. It is designed to replace traditional static / shield / earth wires on overhead transmission lines with the added benefit of containing optical fibers which can be used for telecommunications purposes.

OPGW Applications
OPGW Cable

STANDARD & REFERENCES

IEEE 1138
IEC 60794-4
TIA 598-D
ASTM B415

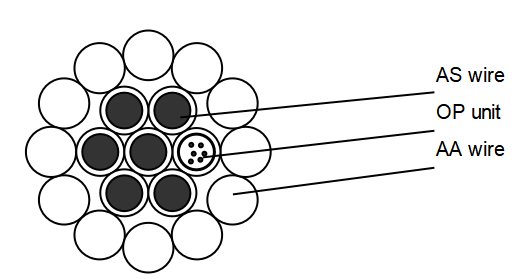

CONSTRUCTIONS

PARAMETERS

FIBERS (MAX) FAULT CURRENT TOTAL CONDUCTOR AREA OVERALL DIAMETER WEIGHT APPROXIMATE RBS SAG10 CHART # MAX SHIP LENGTH (PER REEL TYPE)
(KA)²SEC IN² MM² IN MM LBS/FT KG/M LBS KGF WOOD (M) STEEL (M)
48 43 0.1248 80.52 0.465 11.80 0.314 0.467 16,250 7,400 1-1421 7000 7000
48 54 0.1248 80.52 0.465 11.80 0.238 0.354 10,500 4,700 1-1455 7000 7000
48 53 0.1334 86.09 0.472 12.00 0.316 0.470 15,750 7,100 1-1450 7000 7000
48 63 0.1334 86.09 0.472 12.00 0.244 0.362 10,000 4,600 1-1438 7000 7000
48 58 0.1482 95.64 0.504 12.80 0.382 0.568 20,500 9,300 1-1442 6350 7000
48 73 0.1482 95.64 0.504 12.80 0.296 0.441 13,750 6,300 1-1440 7000 7000
48 77 0.1663 107.28 0.528 13.40 0.411 0.612 21,500 9,700 1-1453 5950 7000
48 96 0.1663 107.28 0.528 13.40 0.310 0.462 13,750 6,200 1-1439 7000 7000
72 51 0.1318 85.01 0.472 12.00 0.316 0.470 15,750 7,100 1-1457 7000 7000
72 61 0.1318 85.01 0.472 12.00 0.243 0.362 10,000 4,600 1-1438 7000 7000
72 71 0.1547 99.80 0.507 12.90 0.367 0.546 18,250 8,300 1-1450 6650 7000
72 85 0.1547 99.80 0.507 12.90 0.282 0.420 11,750 5,300 1-1438 7000 7000
FIBERS (MAX) FAULT CURRENT TOTAL CONDUCTOR AREA OVERALL DIAMETER WEIGHT APPROXIMATE RBS SAG10 CHART # MAX SHIP LENGTH (PER REEL TYPE)
(KA)²SEC IN² MM² IN MM LBS/FT KG/M LBS KGF WOOD (M) STEEL (M)
72 75 0.1646 106.20 0.528 13.40 0.410 0.611 21,500 9,700 1-1421 5950 7000
72 94 0.1646 106.20 0.528 13.40 0.310 0.461 13,750 6,200 1-1455 7000 7000
96 51 0.1393 89.86 0.500 12.70 0.385 0.573 18,900 8,600 1-1442 4800 4800
96 64 0.1393 89.86 0.500 12.70 0.306 0.456 12,750 5,800 1-1440 4800 4800
96 62 0.1550 100.00 0.528 13.40 0.431 0.641 21,500 9,800 1-1442 4800 4800
96 81 0.1550 100.00 0.528 13.40 0.331 0.492 14,000 6,300 1-917 4800 4800
96 86 0.1803 116.31 0.563 14.30 0.488 0.726 24,500 11,100 1-1425 4800 4800
96 106 0.1803 116.31 0.563 14.30 0.340 0.591 17,400 7,900 1-1460 4800 4800

Please contact engineer to Get complate specification.
