NMD90 CSA/cUL 300V INDOOR BUILDING WIRE

Home / Product / NMD90 CSA/cUL 300V INDOOR BUILDING WIRE

Copper or Aluminum conductor PVC insulation Nylon cover
Copper or Aluminum conductor XLPE insulation
In dry locations only at temperature not to exceed 90°C.

APPLICATION

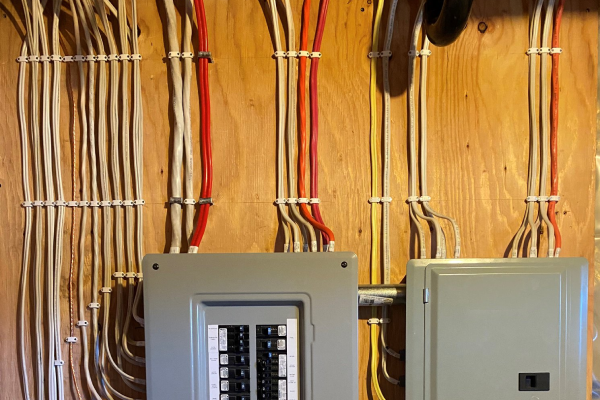

NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C or -40°C for two-conductor cables and -25°C for three-conductor cables (with suitable handling procedures).

Material should be properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further information related to applications.

STANDARD & REFERENCES

CSA C22.2 No. 48 (non-metallic sheathed cable)

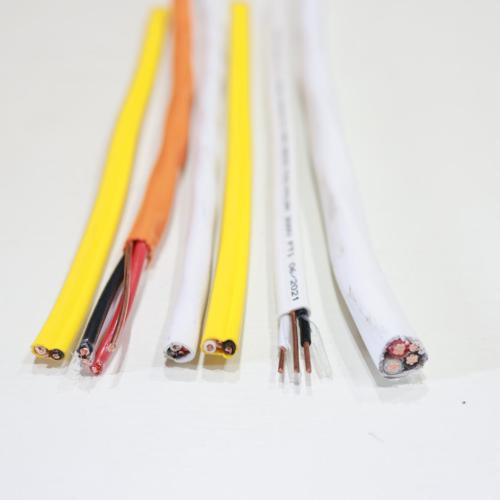

Jacket Color:
•WHITE – General Residential Wiring

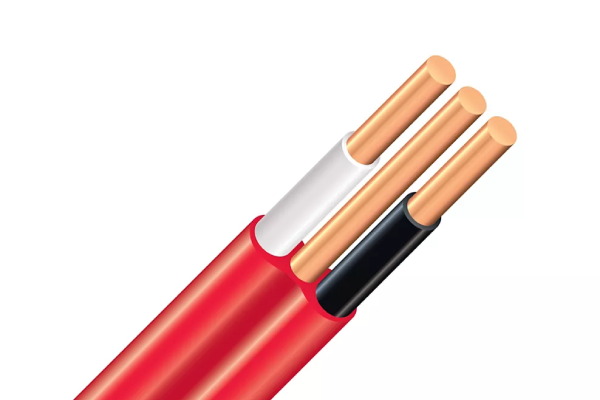

•RED – 2 Black and Red conductors

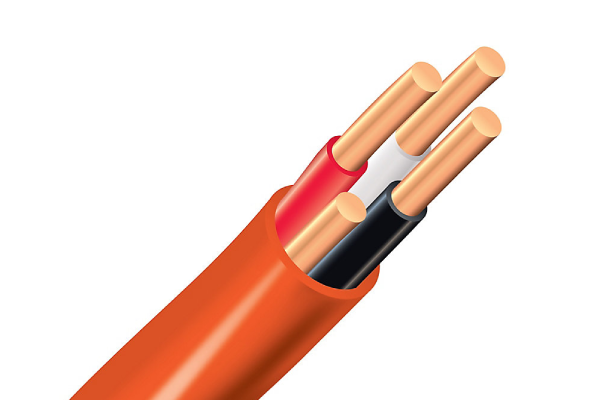

•ORANGE – No. 10 AWG General Residential Wiring
•YELLOW – No. 12 AWG General Residential Wiring
•BLUE – No. 14 AWG – 2 black and white conductors

CONSTRUCTIONS

Feature	Specification
Conductor	Option 1: Copper conductor with Copper grounding wire (14AWG to 2AWG) Option 2: Aluminium alloy 8000 series ACM with AL grounding wire, Grey (6AWG to 2AWG)
Insulation	Polyvinyl Chloride (PVC)
Protective Covering	Nylon
Jacket	PVC, Heat and moisture-resistant, flame retardant FT1
Number of Conductor	2 parallel laid 3 or 4 round laid

PARAMETERS

CSA/cUL NMD90 CU Wire

（For Aluminum conductor datasheets please contact +86 15838074502）

Conductor					Grounding Wire		Jacket Thickness	OD	Weight	Max. DC resistance at 20C (Ω/km)
Size AWG	NO.	No. of strands	Insulation Thickness	Nylon Thickness	Size ( AWG)	No. of Strands	Jacket Thickness	OD	Weight
Size AWG	NO.		mm	mm			mm	mm	kg/km
14	2	1	0.76	0.13	14	1	0.76	4.9 x 9.9	108.9	8.62
12	2	1	0.76	0.13	14	1	0.76	5.3 x 11.2	148.8	5.43
10	2	1	0.76	0.13	12	1	0.76	5.9 x 12.8	209.9	3.41
8	2	7	0.89	0.16	10	1	1.14	8.1 x 16.4	324.1	2.14
6	2	7	1.14	0.2	8	7	1.14	9.6 x 20.2	487.2	1.36
14	3	1	0.76	0.13	14	1	0.76	8.8	136.5	8.62
12	3	1	0.76	0.13	14	1	0.76	9.8	177.9	5.43
10	3	1	0.76	0.13	12	1	0.76	11	249.7	3.41
8	3	7	0.89	0.16	10	1	1.14	14.8	418.7	2.14
6	3	7	1.14	0.2	8	7	1.14	18.1	634.4	1.36
4	3	7	1.14	0.2	8	7	1.52	21.4	917.3	0.848
3	3	7	1.14	0.2	6	7	2.03	24.1	1188	0.673
2	3	7	1.14	0.2	6	7	2.03	25.8	1400.9	0.534
14	3	1	0.76	0.13	14	1	0.76	8.8	169.2	8.62
12	3	1	0.76	0.13	14	1	0.76	9.8	222.7	5.43
10	3	1	0.76	0.13	12	1	0.76	11	316.2	3.41
8	3	7	0.89	0.16	10	1	1.14	14.8	524.4	2.14
6	3	7	1.14	0.2	8	7	1.14	18.1	800	1.36
4	3	7	1.14	0.2	8	7	1.52	21.4	1163.3	0.848
3	3	7	1.14	0.2	6	7	2.03	24.1	1497.8	0.673
2	3	7	1.14	0.2	6	7	2.03	25.8	1776.2	0.534

Please contact engineer to Get complate specification.
