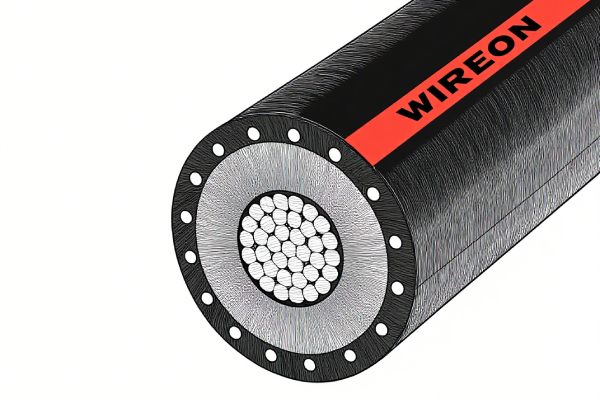

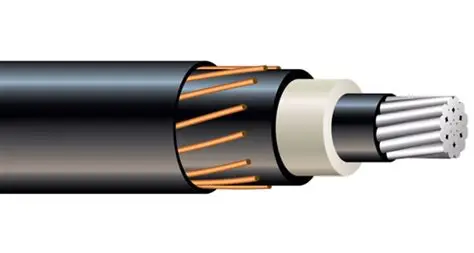

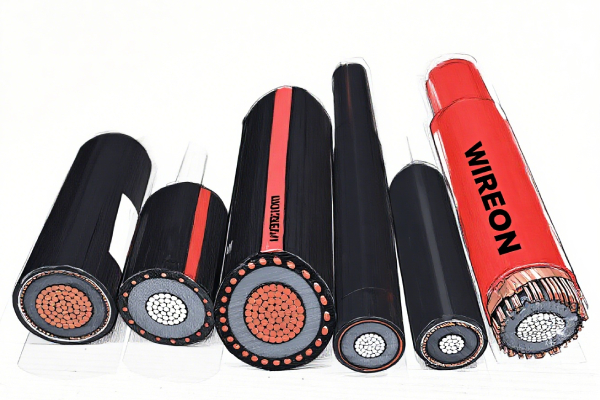

Stranded Compressed aluminum or copper conductor, triple extruded conductor screen,insulation and insulation screen, copper wire or copper tape screened, LLDPE sheath.

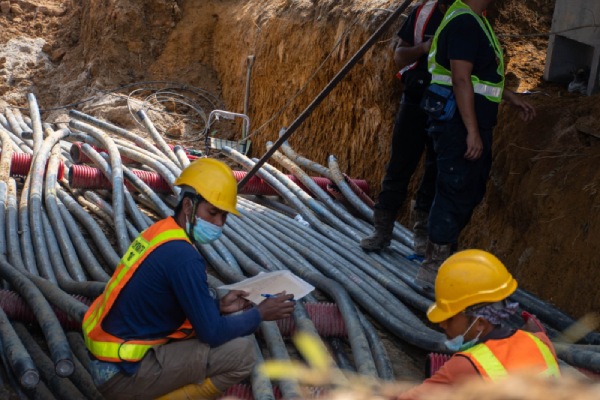

Used for medium voltage installations or distribution networks both indoors and outdoors. Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.
UL Standard 1072 for Medium Voltage Power Cable.
ICEA S-93-639/ ICEA S-94-649
NEMA WC74 5-46 kV
AEIC CS8-00 for Extruded Dielectric Shielded Power Cables Rated 5 through 46 kV.
UL Listed for Sun Light Resistant
| Conductor | Electrolytic Compressed aluminum class 2 or copper class 2 (Soft Copper or 1350-H19 aluminum) |
| Conductor screen | Semi conductive extruded layer |
| Insulation | TR-XLPE |
| Insulation screen | Semi conductive extruded layer, Easy strippable |
| Copper screen | Copper wires or copper tape |
| Outer sheath | Sun resistant LLDPE sheath |
| Rated voltage (U) | 5~35 kV |
| Identification | Manufacturer’s Name, UL Mark, Type of Insulation, Insulation Level, Wire Size and Type, Rating and UL FILE No. Will be imprinted on the outer insulation jacket of the cable. |
| SIZE AWG/MCM | Nominal conductor diameter (m m) | Nominal insulation thickness (mm) | Nominal diameter over insulation(m m) | Strands No.* | Strands diameter (mm) | Jacket thickness (mm) | Jacket Diameter (mm)* | Weight (kg/km)* |
| 2 | 7.05 | 4.45 | 17.0 | 10 | 1.63 | 140 | 24.9 | 738.4 |
| 1-00 | 9.0 | 4.45 | 18.9 | 10 | 2.05 | 140 | 27.7 | 991.5 |
| 2-00 | 10.1 | 4.45 | 20.0 | 13 | 2.05 | 1.40 | 28.8 | 1148.0 |
| 3-00 | 11.4 | 4.45 | 21.3 | 16 | 2.05 | 1.40 | 30.1 | 1318.8 |
| 4-00 | 12.8 | 4.45 | 22.7 | 13 | 2.59 | 140 | 32.5 | 1607.5 |
| 250 | 13.9 | 4.45 | 23.8 | 15 | 2.59 | 1.40 | 33.6 | 1793.7 |
| 350 | 16.5 | 4.45 | 26.4 | 21 | 2.59 | 140 | 36.7 | 2317.5 |
| 500 | 19.6 | 4.45 | 29.5 | 24 | 2.91 | 1.40 | 40.5 | 3080.2 |
| 750 | 24.1 | 4.45 | 34.4 | 28 | 3.26 | 2.03 | 47.3 | 4401.9 |
| 1000 | 27.8 | 4.45 | 38.1 | 38 | 3.26 | 2.03 | 51.0 | 5597.8 |
| 1250 | 31.2 | 5.59 | 43.9 | 47 | 3.26 | 2.03 | 57.6 | 7006.4 |
| 1500 | 34.1 | 5.59 | 47.3 | 56 | 3.26 | 2.03 | 60.9 | 8161.6 |
| *The values can have smalldeviations;The number of copper wires varies according to the actual situation. | ||||||||
| SIZE AWG/MCM | Nominal conductor diameter (m m) | Nominal insulation thickness (mm) | Nominal diameter over insulation(m m) | Strands No.* | Strands diameter (mm) | Jacket thickness (mm) | Jacket Diameter (mm)* | Weight (kg/km) |
| 2 | 7.05 | 8.13 | 24.3 | 10 | 1.63 | 1.40 | 32.2 | 1064.4 |
| 1-00 | 9.0 | 8.13 | 26.3 | 10 | 2.05 | 1.40 | 35.0 | 1348.6 |
| 2-00 | 10.1 | 8.13 | 27.4 | 13 | 2.05 | 1.40 | 36.6 | 1552.1 |
| 3-00 | 11.4 | 8.13 | 28.7 | 16 | 2.05 | 1.40 | 37.9 | 1738.5 |
| 4-00 | 12.8 | 8.13 | 30.1 | 13 | 2.59 | 1.40 | 40.4 | 2057.3 |
| 250 | 13.9 | 8.13 | 31.2 | 15 | 2.59 | 1.40 | 41.5 | 2256.6 |
| 350 | 16.5 | 8.13 | 33.8 | 21 | 2.59 | 2.03 | 45.4 | 2864.8 |
| 500 | 19.6 | 8.13 | 36.9 | 24 | 2.91 | 2.03 | 49.1 | 3676.3 |
| 750 | 24.1 | 8.13 | 41.7 | 28 | 3.26 | 2.03 | 55.4 | 5058.7 |
| 1000 | 27.8 | 8.13 | 45.4 | 38 | 3.26 | 2.03 | 59.1 | 6300.7 |
| 1250 | 31.2 | 8.13 | 49.0 | 47 | 3.26 | 2.03 | 62.7 | 7474.9 |
| 1500 | 34.1 | 8.13 | 52.3 | 56 | 3.26 | 2.03 | 66.0 | 8655.5 |
| *The values can have smalldeviations;The number of copper wires varies according to the actual situation. | ||||||||
