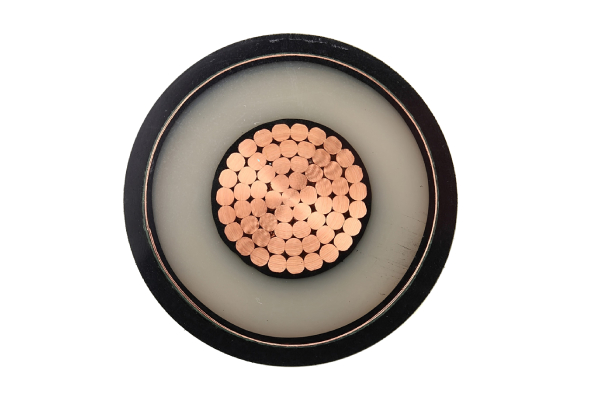

Home / Product / Medium voltage XLPE or PVC insulated power cable

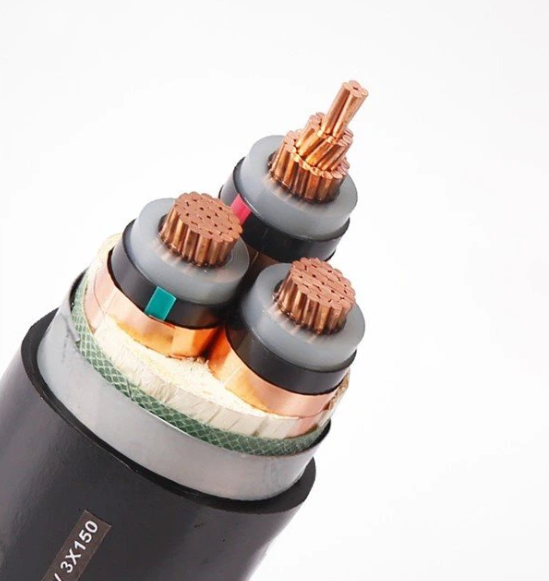

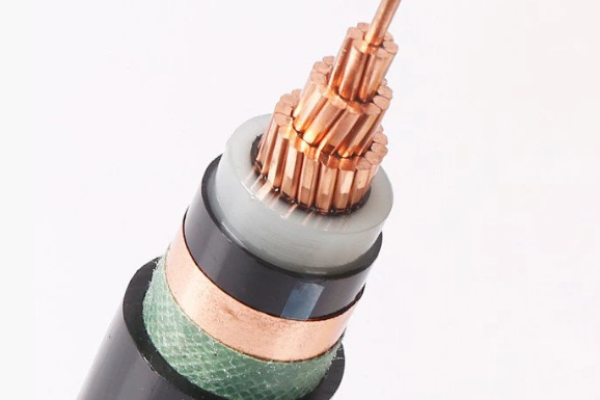

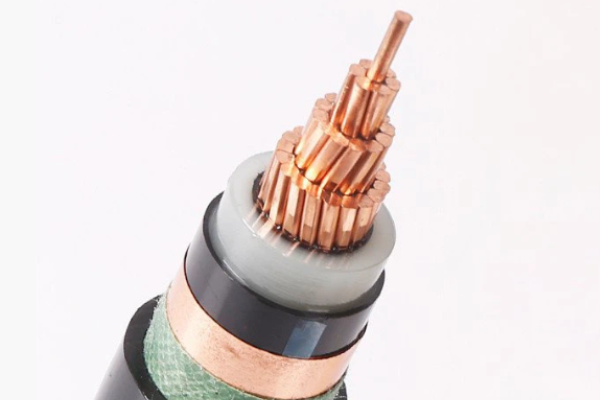

CU or AL conductor, XLPE or PVC insulation, copper tape screen, PVC or LSZH sheath, with or without steel wire or steel tape armor, flame retardant, sun resistant, underground
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting
Operating characteristics
– Rated power-frepuency voltage U0/U: 3.6/6kv～26/35kv.
– Max.admissible operating temperature of the conductor:90℃.
– Max. short-circurt temperature of conductor shall not exceed 2500C. (5s maximum duration)
– The ambient temperature under installation should not below 00C.
– The bending radius of a single-core cable should not less than 20 times of the cable diameter.
The bending radius of a multi-core cable should not less than 15 times of the cable diameter.
IEC 60502-2. Or BS, DIN, ICEA standard as customer request.
IEC 60228
IEC 60332
| Component | Specification / Material |
|---|---|
| Standards | IEC 60502-2 or BS6622, BS EN/IEC 60228 |
| Conductor | Class 2 stranded plain copper conductor or aluminum conductor |
| Conductor Screen | Semi-conducting material |
| Insulation | XLPE (Cross-Linked Polyethylene) or PVC (Polyvinyl Chloride) |
| Insulation Screen | Semi-conducting material |
| Metallic Screen | Individual and overall copper tape screen |
| Separator | Binding tape |
| Bedding | PVC (Polyvinyl Chloride) |
| Armoring | Single Core: Aluminum Wire Armored (AWA) or Aluminum Tape Armored (ATA) Multi Core: Steel Wire Armored (SWA) or Steel Tape Armored (STA) |
| Sheath | PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen) |
| Type | Designation | Applications |
| YJV | Copper conductor,XLPE insulated,PVC sheathed power cable | For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | |
| YJY | Copper conductor, XLPE insulated,PE sheathed power cable | |
| YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | |
| YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | |
| YJV23 | Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. |
| YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | |
| YJV33 | Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable | |
| YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
| Item | Category A 、B | 3.6/6kV | 6/10kV | 8.7/15kV | 12/20kV | 18/30kV | 21/35kV |
| Category A 、B | 6/6kV | 8.7/10kV | 12/15kV | 18/20kV | – | 26/35kV | |
| Single core | mm2 | 25-1200 | 25-1200 | 35-1200 | 50-1200 | 50-1200 | 50-1200 |

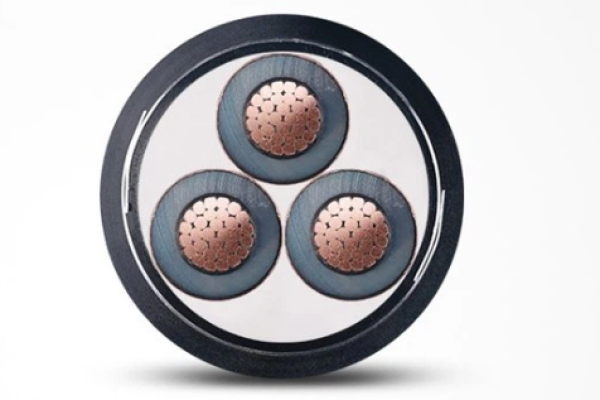

| Three core | mm2 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
| The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B. | |||||||
