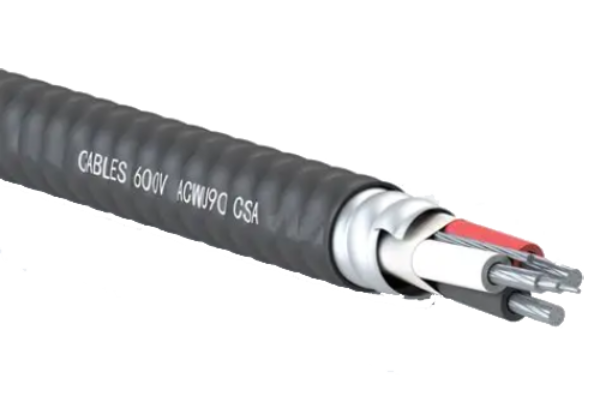

600V RATING 8000 SERIES ACM ALUMINUM CONDUCTORS CSA APPROVED FOR HAZARDOUS LOCATIONS CSA -40°C LOW TEMPERATURE RATING CSA SUNLIGHT RESISTANT XLPE 90°C INSULATION.

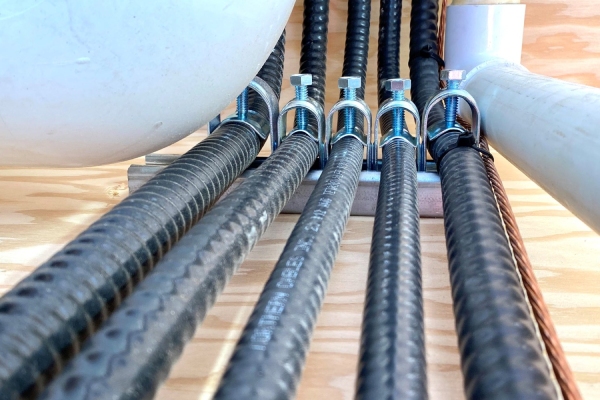

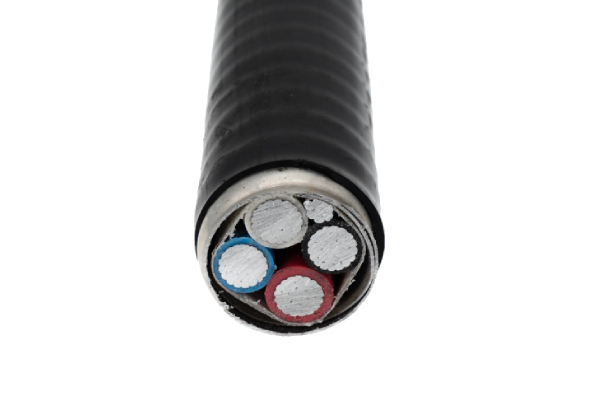

ACWU 90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations; direct earth burial; service entrance above or below ground.
CSA C22.2 N° 2556
CSA C22.2 N° 51
CSA Sunlight Resistant
FT-4 – Flame Test Rating

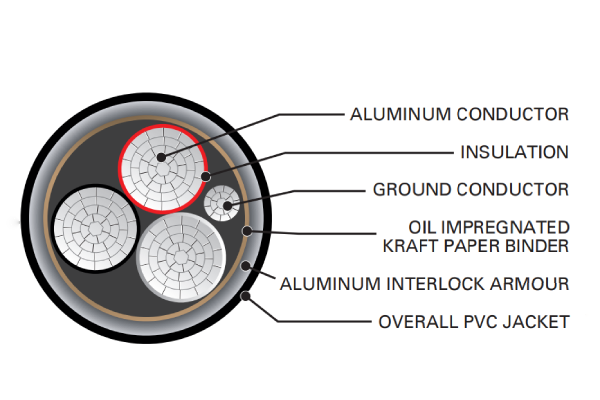

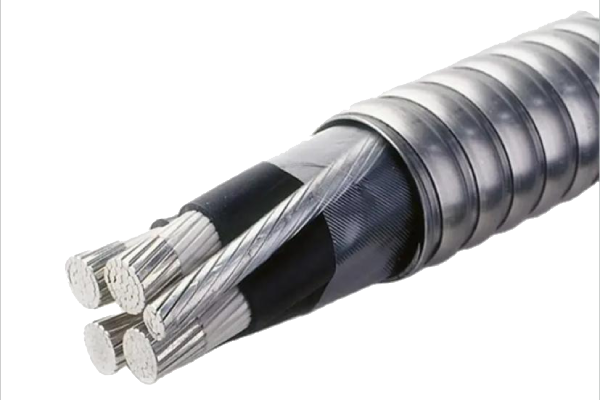

| Feature | Specification |
|---|---|
| Conductor |
|
| Insulation | Cross-linked polyethylene (RW90 XLPE) |
| Assembly Wrap | Conductor assembly paper wrapped |
| Armor | Bare interlocked aluminum armor |
| Sheath | PVC Sheath |
| Number of Conductors | Two, three, or four core round laid |
| Colour Coding |
|
| No of phase | Size | Insulation thickness | Bonding wire Size | PVC Jacket | Approximate Total Diameter | Approximate Net Cable Weight |
| Awg or kcmil | MM | Awg | mm | MM | kg/km | |
| 3 | 6 | 1.14 | 8 | 1.27 | 22 | 807 |
| 3 | 4 | 1.14 | 6 | 1.27 | 24 | 981 |
| 3 | 3 | 1.14 | 6 | 1.27 | 25 | 1071 |
| 3 | 2 | 1.14 | 6 | 1.27 | 27 | 1188 |
| 3 | 1 | 1.4 | 4 | 1.27 | 30 | 1412 |
| 3 | 1/0 | 1.4 | 4 | 1.27 | 32 | 1575 |
| 3 | 2/0 | 1.4 | 4 | 1.27 | 34 | 1773 |
| 3 | 3/0 | 1.4 | 4 | 1.27 | 37 | 2015 |
| 3 | 4/0 | 1.4 | 4 | 1.27 | 40 | 2304 |
| 3 | 250 | 1.65 | 2 | 1.52 | 44 | 2668 |
| 3 | 300 | 1.65 | 2 | 1.52 | 46 | 2980 |
| 3 | 350 | 1.65 | 2 | 1.52 | 49 | 3281 |
| 3 | 400 | 1.65 | 2 | 1.52 | 51 | 3584 |
| 3 | 500 | 1.65 | 1 | 1.52 | 59 | 4713 |
| 3 | 600 | 2.03 | 1 | 1.9 | 65 | 5478 |
| 3 | 750 | 2.03 | 1 | 1.9 | 67 | 6245 |
| No of phase | Size | Insulation thickness | Bonding wire Size | PVC Jacket | Approximate Total Diameter | Approximate Net Cable Weight |
| Awg or kcmil | MM | Awg | mm | MM | kg/km | |
| 4 | 6 | 1.14 | 8 | 1.27 | 24 | 932 |
| 4 | 4 | 1.14 | 6 | 1.27 | 27 | 1142 |
| 4 | 3 | 1.14 | 6 | 1.27 | 28 | 1256 |
| 4 | 2 | 1.14 | 6 | 1.27 | 30 | 1402 |
| 4 | 1 | 1.4 | 4 | 1.27 | 33 | 1675 |
| 4 | 1/0 | 1.4 | 4 | 1.27 | 35 | 1881 |
| 4 | 2/0 | 1.4 | 4 | 1.27 | 38 | 2126 |
| 4 | 3/0 | 1.4 | 4 | 1.27 | 40 | 2416 |
| 4 | 4/0 | 1.4 | 4 | 1.27 | 44 | 2781 |
| 4 | 250 | 1.65 | 2 | 1.52 | 51 | 3708 |
| 4 | 300 | 1.65 | 2 | 1.52 | 54 | 4129 |
| 4 | 350 | 1.65 | 2 | 1.52 | 57 | 4534 |
| 4 | 400 | 1.65 | 2 | 1.52 | 60 | 4943 |
| 4 | 500 | 1.65 | 1 | 1.9 | 65 | 5733 |
| 4 | 600 | 2.03 | 1 | 1.9 | 72 | 6704 |
| 4 | 750 | 2.03 | 1 | 1.9 | 78 | 7847 |
Please contact engineer to Get complate specification.
Please do not hesitate to contact our cable engineer, they will be back to you in next 8 hours.
