ACSR BARE OVERHEAD CONDUCTOR

Home / Product / ACSR BARE OVERHEAD CONDUCTOR

APPLICATION

Conductor(AAC ,AAAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

STANDARD & REFERENCES

For ACSR : ASTM B232, BS215 Part2, CSA C49, IEC61089, DIN48204

CONSTRUCTIONS

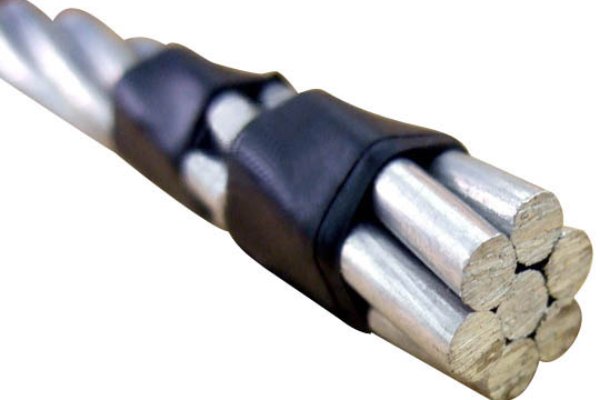

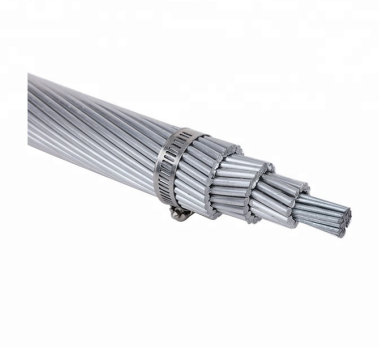

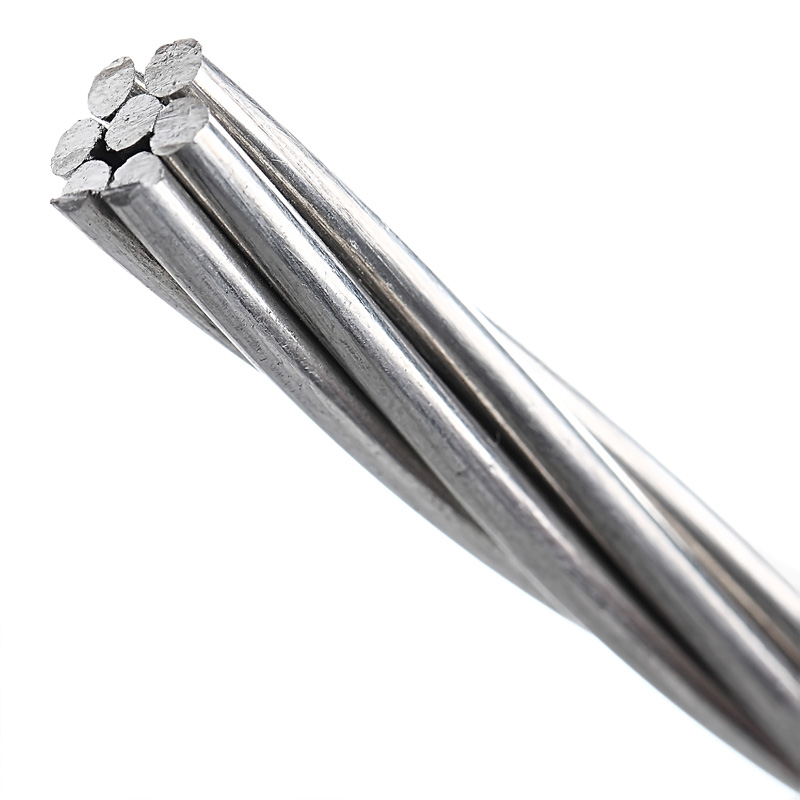

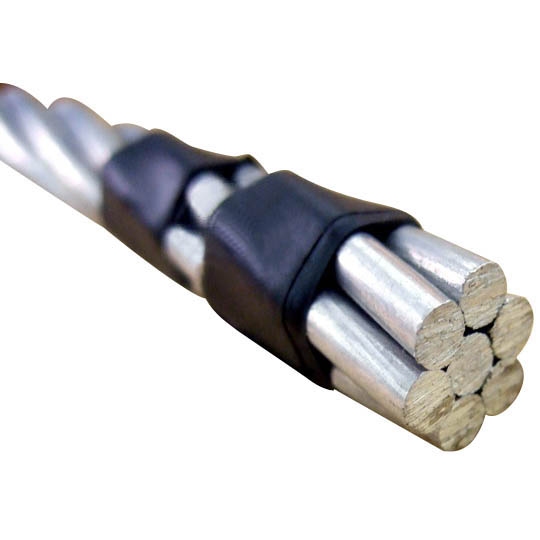

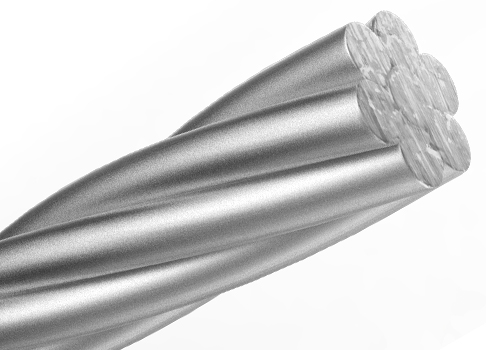

ACSR – Aluminum Conductor Steel Reinforced

PARAMETERS

Code Word	Size (AWG or kcmil)	Strand-ing (Al/Stl)	Diameter (ins.)				Weight Per 1000 ft. (lbs.)			Content (%)		Rated Strength (lbs.)	Resistance OHMS/1000 ft.		Allowable (Amps)
			Individual Wires		Steel Core	Complete Cable	Weight Per 1000 ft. (lbs.)			Content (%)			Resistance OHMS/1000 ft.
			Al	Stl	Steel Core	Complete Cable	Al	Stl	Total	Al	Stl		DC @ 20°C	AC @ 75°C
Turkey	6	6/1	0.0661	0.0661	0.0661	0.198	24	12	36	67.88	32.12	1190	0.641	0.806	105
Swan	4	6/1	0.0834	0.0834	0.0834	0.25	39	18	57	67.87	32.12	1860	0.403	0.515	140
Swanate	4	7/1	0.0772	0.103	0.103	0.257	39	28	67	58.1	41.9	2360	0.399	0.519	140
Sparrow	2	6/1	0.1052	0.1052	0.1052	0.316	62	29	91	67.9	32.1	2850	0.254	0.332	184
Sparate	2	7/1	0.0974	0.1298	0.1298	0.325	62	45	107	58.12	41.88	3460	0.251	0.338	184
Robin	1	6/1	0.1181	0.1181	0.1181	0.354	78	37	115	67.88	32.12	3550	0.201	0.268	212
Raven	1/0	6/1	0.1327	0.1327	0.1327	0.398	99	47	145	67.89	32.11	4380	0.159	0.217	242
Quail	2/0	6/1	0.1489	0.1489	0.1489	0.447	124	59	183	67.88	32.12	5310	0.126	0.176	276
Pigeon	3/0	6/1	0.1672	0.1672	0.1672	0.502	156	74	230	67.87	32.13	6620	0.1	0.144	315
Penguin	4/0	6/1	0.1878	0.1878	0.1878	0.563	197	93	291	67.88	32.12	8350	0.0795	0.119	357
Waxwing	266.8	1/18	0.1217	0.1217	0.1217	0.609	250	39	289	86.43	13.57	6880	0.0643	0.0787	449
Partridge	266.8	7/26	0.1013	0.0788	0.2363	0.642	251	115	367	68.51	31.49	11300	0.0637	0.0779	475
Ostrich	300	7/26	0.1074	0.0835	0.2506	0.68	283	130	412	68.51	31.49	12700	0.0567	0.0693	492
Merlin	336.4	1/18	0.1367	0.1367	0.1367	0.684	315	49	365	86.43	13.57	8680	0.051	0.0625	519
Linnet	336.4	7/26	0.1137	0.0885	0.2654	0.72	317	146	462	68.51	31.49	14100	0.0505	0.0618	529
Oriole	336.4	7/30	0.1059	0.1059	0.3177	0.741	318	209	526	60.35	39.65	17300	0.0502	0.0613	535
Chickadee	397.5	1/18	0.1486	0.1486	0.1486	0.743	373	58	431	86.43	13.57	9940	0.0432	0.0529	576
Brant	397.5	7/24	0.1287	0.0858	0.2574	0.772	374	137	511	73.21	26.79	14600	0.043	0.0526	584
Ibis	397.5	7/26	0.1236	0.0962	0.2885	0.783	374	172	546	68.51	31.49	16300	0.0428	0.0523	587
Lark	397.5	7/30	0.1151	0.1151	0.3453	0.806	375	247	622	60.35	39.65	20300	0.0425	0.0519	594
Pelican	477	1/18	0.1628	0.1628	0.1628	0.814	447	70	517	86.44	13.56	11800	0.036	0.0442	646
Flicker	477	7/24	0.141	0.094	0.2819	0.846	449	164	614	73.21	26.79	17200	0.0358	0.0439	655
Hawk	477	7/26	0.1354	0.1053	0.316	0.858	449	207	656	68.51	31.49	19500	0.0356	0.0436	659
Hen	477	7/30	0.1261	0.1261	0.3783	0.883	450	296	746	60.35	39.65	23800	0.0354	0.0433	666
Osprey	556.5	1/18	0.1758	0.1758	0.1758	0.879	522	82	603	86.43	13.57	13700	0.0308	0.0379	711
Parakeet	556.5	7/24	0.1523	0.1015	0.3045	0.914	524	192	716	73.21	26.79	19800	0.0307	0.0376	721
Dove	556.5	7/26	0.1463	0.1138	0.3413	0.927	524	241	765	68.51	31.49	22600	0.0306	0.0375	726
Eagle	556.5	7/30	0.1362	0.1362	0.4086	0.953	525	345	871	60.35	39.65	27800	0.0303	0.0372	734
Peacock	605	7/24	0.1588	0.1059	0.3177	0.953	570	209	779	73.2	26.8	21600	0.0282	0.0346	760
Squab	605	7/26	0.1525	0.1186	0.3559	0.966	570	262	832	68.51	31.49	24300	0.0281	0.0345	765
Wood Duck	605	7/30	0.142	0.142	0.426	0.994	571	375	946	60.35	39.65	28900	0.0279	0.0342	774
Teal	605	30/19	0.142	0.0852	0.426	0.994	571	367	939	60.86	39.14	30000	0.0279	0.0342	773
Kingbird	636	1/18	0.188	0.188	0.188	0.94	596	94	690	86.43	13.57	15700	0.027	0.0332	773
Swift	636	1/1	0.1329	0.1329	0.1329	0.93	596	47	643	92.72	7.28	13690	0.0271	0.0334	769
Rook	636	7/24	0.1628	0.1085	0.3256	0.977	599	219	818	73.22	26.78	22600	0.0268	0.033	784
Grosbeak	636	7/26	0.1564	0.1216	0.3649	0.991	599	275	874	68.51	31.49	25200	0.0267	0.0328	789

Please contact engineer to Get complate specification.
