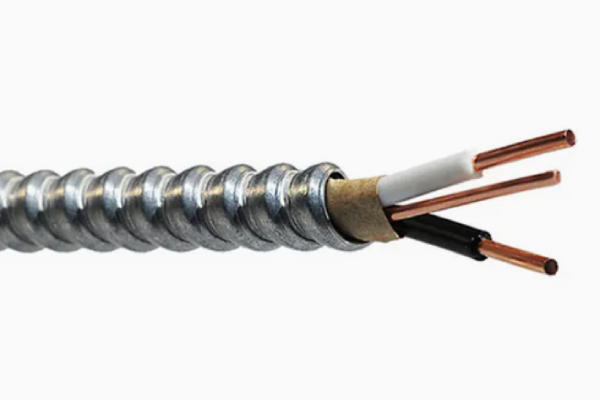

AC90 Metal Clad Cable 600V

Home / Product / AC90 Metal Clad Cable 600V

600V AC90 cable copper conductor XLPE insulated AIA armor cable use for Canadian market, -40 C to +90 C, FT4-STI.

APPLICATION

GET A QUOTE

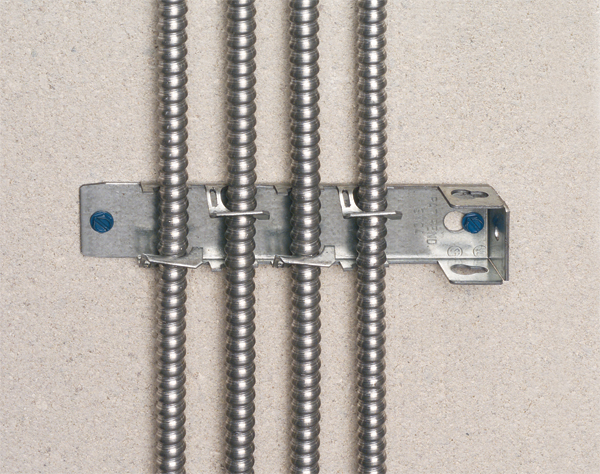

APPLICATION

AC90 is a flexible interlocked aluminum armoured cable approved for use in open and concealed wiring in dry locations.

All AC90 is CSA approved and manufactured with two, three, or four copper conductors insulated with RW90 cross-linked polyethylene rated at 600 volts from #14 to #2 AWG. The bonding conductor is bare copper.

AC90 is a cost effective alternative to conduit wiring. AC90 eliminates the need for conduit, fittings and the labour associated with pulling in wire, threading, and forming conduit. Multiconductor and special construction AC90 can be manufactured.

STANDARD & REFERENCES

CSA C22.2 N° 2556

CSA C22.2 N° 51

CSA Sunlight Resistant

FT-4 – Flame Test Rating

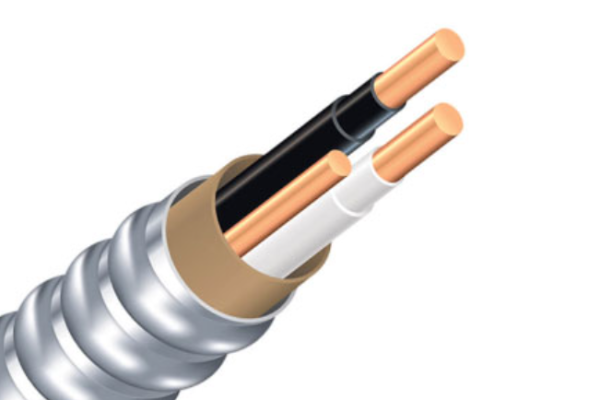

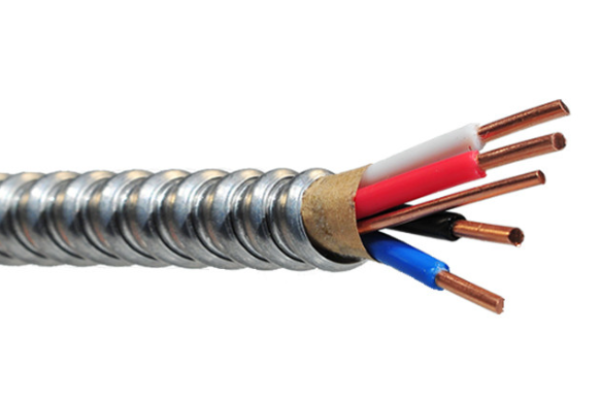

CONSTRUCTIONS

Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.

Feature	Specification
Conductor	Option 1: Copper conductor with Copper grounding wire (14AWG to 2AWG) Option 2: Aluminium alloy 8000 series (ACM) with Aluminium grounding wire (6AWG to 750MCM)
Insulation	Cross-linked polyethylene (RW90 XLPE)
Assembly Wrap	Conductor assembly paper wrapped
Armour	Bare interlocked aluminum armour
Number of Conductors	Two, three, or four core round laid

PARAMETERS

Size AWG /Kcmil	Conductor type	Grounding conductor	Insulation thickness	Approx. OD diameter	Approx. Weight
Size AWG /Kcmil	Conductor type	AWG	mm	mm	Kg/km
14/2	Solid copper	14	0.76	12	170
14/3	Solid copper	14	0.76	12.5	200
12/2	Solid copper	14	0.76	12.8	203
12/3	Solid copper	14	0.76	13.4	245
10/2	Solid copper	12	0.76	14	261
10/3	Solid copper	12	0.76	14.6	324

Note: Please contact us to get more information about CU or AL conductor with bare interlocked aluminum armoured size series in 3 and 4 core

Please contact engineer to Get complate specification.
